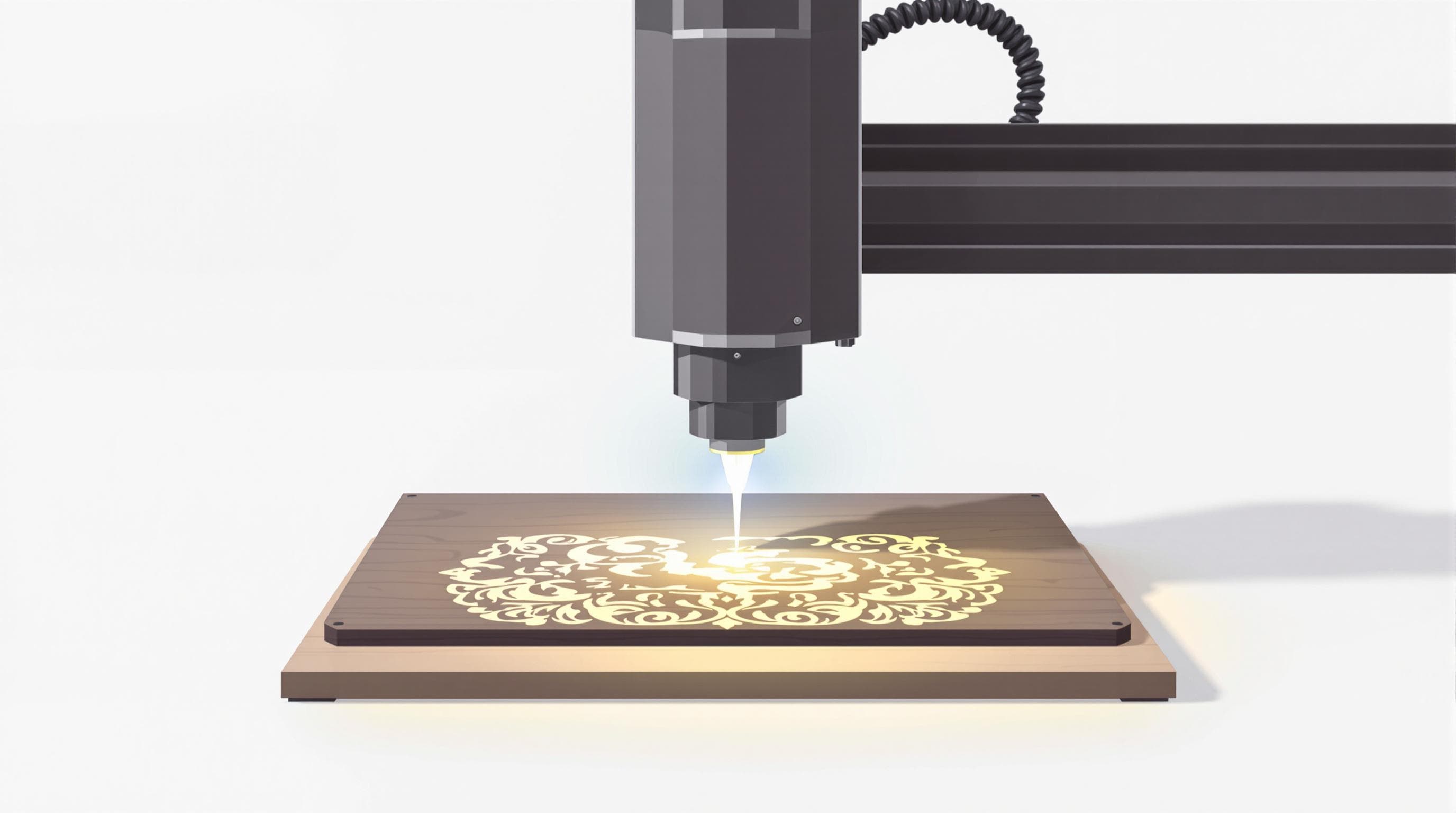

How Laser Etching and Engraving Work
Laser etching and engraving are precision marking techniques that use focused laser beams to create designs on various materials. Here's what you need to know:
- Laser etching: Melts the surface to create raised marks about 0.0001" deep
- Laser engraving: Vaporizes material to make deeper, permanent marks 0.0001" to 0.005" deep
Key differences:
| Feature | Laser Etching | Laser Engraving |
|---|---|---|
| Depth | Shallow | Deeper |
| Speed | Faster | Slower |
| Durability | 5-10 years | Highly durable |
| Best for | High volume, delicate items | Wear-resistant markings |
Both methods work on metals, wood, glass, and more. Etching is faster and cheaper for high-volume jobs, while engraving offers more durability for industrial applications.
Before starting:
- Clean materials thoroughly
- Use vector files for best results
- Wear proper safety gear
- Ensure good ventilation
Whether you need quick branding or long-lasting part IDs, understanding these techniques helps you choose the right method for your project.
Related video from YouTube
How Laser Systems Work
Laser etching and engraving systems are high-tech machines that combine precise optics with powerful energy sources. Let's break down how these cool devices work.
Main Parts of a Laser System
Every laser system has three key components:
1. Laser Source
This is where it all starts. The laser source creates the intense beam of light used for etching or engraving.
2. Optics
A set of lenses and mirrors guide and focus the laser beam onto the material you're working on.
3. Control Unit
Think of this as the system's brain. It manages power levels, speed, and how the laser moves.
Different Types of Lasers
There are two main types of lasers for etching and engraving: CO2 and fiber lasers.
CO2 Lasers are the Swiss Army knives of the laser world. They're great for non-metal materials like wood, acrylic, and fabric. These lasers use a gas mix (including CO2) to create the beam.
Fiber Lasers are the new tech on the block, making waves in metal engraving. They outperform CO2 lasers when it comes to metals.
Here's how they stack up:
| Feature | CO2 Laser | Fiber Laser |
|---|---|---|
| Efficiency | 5-10% | Over 90% |
| Best Materials | Non-metals, some metals | Metals, reflective materials |
| Maintenance | Higher | Lower |
| Initial Cost | Lower | Higher |
| Lifespan | Shorter | Up to 10x longer |
Laser Power and Settings
Getting the settings right is key for perfect etching or engraving. It's all about finding the right mix of power, speed, and focus.
Power controls the energy in the laser beam. More power means deeper engraving, but watch out – too much can damage your material.
Speed is how fast the laser moves. Slower speeds dig deeper, while faster speeds are better for surface-level etching.
Focus affects detail level. A tighter focus (1.5-2.0 inches) creates finer details, while a wider focus (2.5-3.0 inches) works better for broader designs.
"When testing work parameters, adjust Laser Power together with Work Speed to find the optimal combination for engraving or cutting." - Snapmaker
Different materials need different settings. Soft woods like pine need lower power settings (300-400 mm/s speed), while hard woods like oak need higher power (200-300 mm/s speed).
Getting good at tweaking these settings is the key to becoming a laser etching and engraving pro. With practice, you'll get a feel for how to adjust your settings for great results every time.
How Laser Etching Works
Laser etching is a high-tech process that creates permanent marks on various materials. Let's explore how it works and when you might use it.
What is Laser Etching
Laser etching is a no-contact marking method. It uses a focused laser beam to melt the surface of a material, creating a raised mark. Unlike laser engraving, which cuts deeper, etching only affects the top layer - usually no more than 0.001 inches deep.
This process is FAST. Laser etching often takes just seconds, while chemical etching might take days.
How Lasers Change Surfaces
Here's what happens when the laser hits the material:
- The laser beam contacts the surface
- Surface material absorbs energy and melts
- Melted material expands
- Material cools, leaving a raised mark
The result? A permanent design that can look black, white, or gray, depending on the material and laser settings.
Materials and Uses
Laser etching works on lots of different materials. Here's a quick look at some common ones:
| Material | Uses |
|---|---|
| Metals (aluminum, steel) | Serial numbers, barcodes, logos |
| Wood | Decorative items, personalized gifts |
| Glass | Beverage bottles, awards |
| Acrylic | Signage, displays |
| Leather | Luxury tags, accessories |
Car makers use laser etching for part traceability, like etching VIN numbers onto vehicle components.
Food and pharma companies use it too. Graham Dawe, Managing Director of Kanyana Engineering, says:
"Laser etching is a process in which a machine etches marks onto metal by melting the surface."
This helps create lot codes and date stamps on packaging.
When picking materials for laser etching, keep these tips in mind:
- Hardwoods (like maple, cherry, and walnut) work better than softwoods for wood projects.
- Cast acrylic beats extruded acrylic for a cleaner finish.
- For glass, use lower power and higher speeds to avoid cracking.
- Always clean metal surfaces well before etching.
Your material choice affects your project's quality. Think about durability, purpose, and budget when deciding.
Laser etching has changed many industries with its speed and precision. Whether you're making intricate jewelry designs or marking industrial parts, laser etching offers a solid, efficient solution.
How Laser Engraving Works
Laser engraving uses focused light beams to create deep, permanent marks on various materials. Unlike laser etching, which only affects the surface, engraving goes deeper and removes material to create the design.
How Material is Removed
Think of laser engraving as using a super-hot, incredibly precise chisel. Here's the process:
- The laser beam hits the material with intense energy, creating extreme heat.
- This heat vaporizes the material, turning it from solid to gas instantly.
- As the laser moves, it keeps vaporizing material, carving deep grooves that form the design.
The key? Reaching the material's vaporization temperature. Check out these examples:
| Material | Vaporization Temperature |
|---|---|
| Aluminum | 2327°C |
| Copper | 2595°C |
| Iron | 3000°C |
| Zinc | 906°C |
These high temperatures are why laser engraving creates such long-lasting marks. It actually changes the material's structure, so the designs resist fading and wear.
Laserax, a laser system manufacturer, puts it simply:
"Laser engraving is a process that vaporizes materials into fumes to engrave permanent, deep marks."
You can control the engraving depth by tweaking the laser's power and speed. Typically, engraving can go up to 0.5 mm deep - way deeper than etching.
Best Materials and Uses
Laser engraving works on tons of materials. Here are some popular ones:
Metals: Great for industrial marking. Think serial numbers on machine parts or logos on tools. Stainless steel, aluminum, and titanium are common choices.
Wood: Perfect for personalized gifts, decorative items, and signs. Hardwoods often give crisper results than softwoods.
Acrylic: Ideal for illuminated signs, awards, and custom displays. Engraving acrylic can create a cool frosted look that pops when backlit.
Glass: Used for fancy corporate gifts, awards, and personalized drinkware. Laser engraving gives glass a frosted look without weakening it.
Leather: Popular for luxury goods like wallets, belts, and luggage tags. You can create intricate designs without damaging the leather.
Hot Pop Factory, a custom fabrication studio, shares their experience:
"Laser engraved wood gives a natural but finished look to anything you are designing. Recently we've worked on beautifully engraved illustrations and handwriting, as well as engraved gifts and signage, but the possibilities are endless!"
Want to get the best results? Keep these tips in mind:
- For wood, hardwoods like maple or walnut usually engrave cleaner than softwoods.
- Cast acrylic typically engraves better than extruded acrylic.
- When engraving glass, use lower power and higher speeds to avoid cracking.
- Always clean metal surfaces thoroughly before engraving.
Laser engraving has changed the game for many industries. It's precise, versatile, and can create everything from tough industrial markings to delicate artistic designs.
sbb-itb-6f489d9
Etching vs. Engraving: Key Differences
Laser etching and engraving might sound similar, but they're quite different. Let's break down what sets them apart.
Etching is like giving your material a light sunburn. It heats the surface just enough to change its look, creating a shallow mark. Engraving, however, is more like carving – it actually removes material to create deeper, more permanent designs.
The big difference? Depth. Etching typically goes about 0.0001 inches deep. That's thinner than a human hair! Engraving can go much deeper, usually between 0.0001 to 0.005 inches. That's up to 50 times deeper than etching.
This depth difference affects everything from how long your design will last to what materials you can work with. Let's dig into the details.
Comparison Chart
| Feature | Laser Etching | Laser Engraving |
|---|---|---|
| Depth | 0.0001 inches | 0.0001-0.005 inches |
| Process | Melts surface | Vaporizes material |
| Durability | 5-10 years | Highly durable |
| Speed | Faster | Slower |
| Cost | Lower | Higher |
| Best Materials | Metals, plastics, glass | Metals, wood, acrylic |
| Ideal Use | High volume, delicate items | Wear-resistant markings |
Let's break this down:
Durability: Need something to last? Go for engraving. Etched marks might stick around for 5-10 years, but engraved designs can outlast the product itself. That's why you'll often see engraving on industrial parts that need to be identifiable for years.
Speed and Cost: Etching is faster and cheaper, especially for high-volume jobs. It's perfect when you need to mark a lot of items quickly. Engraving takes more time (and more powerful lasers), so it costs more but offers extra durability.
Material Matters: Both techniques work on various materials, but they excel in different areas. Etching is great for delicate items or thin surfaces that can't handle deep marks. Engraving shines with tougher materials where you want that deep, lasting impression.
Let's look at a real-world example: the automotive industry. TechnoMark, a leader in industrial marking solutions, says:
"Choosing the right method for your needs can depend on other factors than the process itself, including: Material being marked, Environment, Setup costs, Wear and tear on materials, Speed, Precision."
A car manufacturer might use etching for logos on glass or plastic parts, where a subtle mark works best. But for crucial parts that need traceable markings throughout the car's life? That's where engraving comes in handy.
It's not always an either-or choice. Many businesses use both techniques depending on the project. The key is knowing the strengths of each method and matching them to your specific needs.
Whether you're marking products for traceability, creating custom gifts, or designing industrial components, understanding the difference between etching and engraving can help you make the right choice for your project.
What You Need to Know Before Starting
Laser etching and engraving can produce amazing results, but you need to prep right and stay safe. Here's what you should know before you start.
Getting Materials Ready
Good prep is key for great results. Focus on these areas:
Clean it up. Dirt or grease on your material can mess up your engraving. OMTech UK says:
"If the material's surface has impurities, grease, dust, or other contaminants, they can interfere with the energy transfer of the laser beam and affect the quality of the engraving."
Use vector files. These tell the laser exactly what to do. Hai Tech Lasers explains:
"Unless you're intentionally creating pixel art, you want any shapes in your design to look perfectly smooth and uniform when engraved onto your material, and this can only be achieved by using a vector file."
Try Adobe Illustrator, Inkscape, or Corel Draw for vector editing.
Pick safe materials. Wood, plastic, fabric, paper, and leather work well. But stay away from PVC, ABS, and epoxy. They can release toxic fumes or damage your machine.
Safety Rules
Safety comes first with lasers. Here's what you need to do:
1. Protect your eyes. Laser light can blind you. Wear the right safety goggles.
2. Get good air flow. Use a fume extractor to get rid of harmful gases.
3. Be ready for fire. Keep a fire extinguisher close, especially when working with wood. An expert notes:
"By following the crucial safety tips and best practices outlined in this blog post, you can operate your laser engraving machine safely and produce stunning results."
4. Know your machine. Different lasers have different safety needs. Learn about yours.
5. Keep it clean. A tidy workspace helps prevent accidents.
Checking Work Quality
To get pro-level results, you need to check your work. Here's how:
Look at the lines. Good engravings have sharp, clear edges.
Check the depth. It should be deep enough to last, but not so deep it damages the material.
Watch for burns. Too much heat can scorch wood. If you see this, adjust your settings.
Test it out. Gently rub the engraving to make sure it stays put.
Get up close. Use a magnifying glass to spot small flaws.
Speed Laser Studio advises:
"Checking laser engraving quality isn't just about looking at the surface - it's about digging deeper to ensure that your project is clean, sharp, and long-lasting."
Summary
Laser etching and engraving are game-changers for marking and personalization. Here's what you need to know:
Laser etching melts the surface, creating raised marks about 0.0001 inches deep. It's quick, cheap, and perfect for high-volume production on softer materials. Laser engraving, however, vaporizes material layers, making deeper marks (0.0001 to 0.005 inches) that last longer.
Choosing between the two? Consider these factors:
1. Material
Etching works on lots of stuff - metals, paper, some acrylics. Engraving shines on metals like stainless steel, brass, and titanium.
2. Durability
Engraved marks stick around longer because they're deeper. Etched marks might last 5-10 years but fade faster.
3. Production volume
Need to mark a ton of items? Etching's your friend. For smaller batches with precise, long-lasting marks, go for engraving.
4. Detail and precision
Both are precise, but etching's better for intricate designs on delicate surfaces.
5. Cost
Etching's usually cheaper, especially for big runs. Engraving costs more because it takes longer and uses more energy.
In the real world, these methods shine in different ways. The auto industry loves laser engraving for durable part IDs. Graham Dawe, Managing Director of Kanyana Engineering, says:
"Laser etching is used on a huge number of materials due to the simplicity, speed, and precision of the process."
That's why etching's a hit for branding and personalizing electronics and promo products.
Need marks that last forever in tough industrial settings? Laser engraving's your best bet. The Foison Metal Team advises:
"In choosing the right technique, consider the material compatibility, precision requirements, production volume, and durability."
Pick the method that fits your needs, and you'll be marking like a pro in no time.
FAQs
What is the process of laser engraving?
Laser engraving uses a high-powered laser beam to create permanent, deep marks by vaporizing material. It's like using a super-precise, light-based chisel. The laser removes layers from the surface, leaving an indentation you can feel.
"Laser engraving will always last longer than any kind of surface printing or marking because the laser beam physically cuts into the item, resulting in a clean, permanent mark."
This comes from TYKMA Electrox, a company that knows their laser marking systems.
Laser engraving works great on metals, wood, and some plastics. It typically goes 0.0001" to 0.005" deep - much deeper than laser etching.
Is laser etching the same as laser engraving?
Nope, they're different:
- Laser etching melts the surface, making a raised mark. It's faster but less durable, and only removes about 0.001" of material or less.
- Laser engraving vaporizes the material, creating a deeper, more permanent mark.
The main differences? Depth and energy. Etching needs less energy because it just melts the surface. Engraving needs more oomph to vaporize the material.
What is the process of laser etching?
Laser etching is a quick way to mark stuff by melting the surface. It's part of the laser marking family, along with engraving and annealing.
Here's the scoop on laser etching:
- It's speedier than engraving, but the marks don't last as long.
- Works on most metals and some other materials.
- Usually only changes the top 0.001" of the surface.
Xometry, a big player in on-demand manufacturing, says:
"Laser etching is faster than laser engraving, but the latter is more durable."
So, how do you choose between etching and engraving? Think about:
- What material you're marking
- How long the mark needs to last
- How many items you're marking
- How precise the mark needs to be
If you need to mark a ton of items quickly and they don't need to last forever, go for etching. But if you want deep, long-lasting marks, especially on tough materials, engraving's your best bet.
